DEAR CUSTOMERS! |
We know that there are two types of platform copies that are
distributed as the boards of our company. These boards do not meet quality
standards of original BELATRA Company products.
We do not account for any damage caused by the use of
pirate counterfeits of our company products.
Below you can find the most typical characteristics that will allow
you to differentiate between the original boards and counterfeits.
In order to enlarge the picture click on it.
TYPE 1
|
Counterfeit |
Original board |
 |
 |

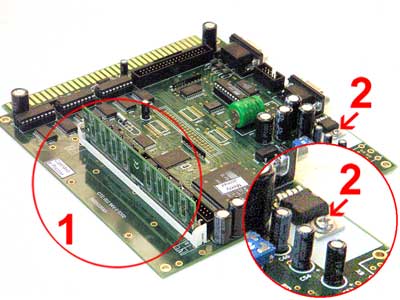

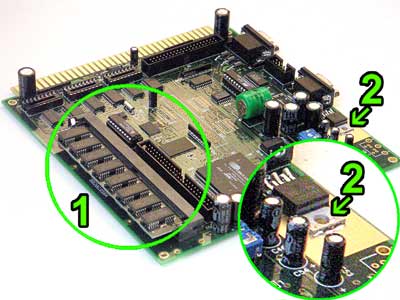

1. SIMM module mounting:
The SIMM module is mounted vertically on the counterfeits and only
horizontally on the original boards.
2. DA2 chip mounting:
In the counterfeits the platform under the chip is white,
and the chip itself is mounted into the board with the help of the screw. The original platform is goldish, and the chip is mounted
into the board by soldering.
|
Counterfeit |
Original board |
 |
 |

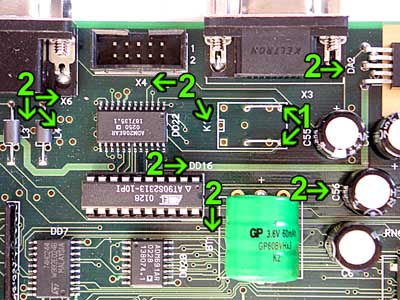

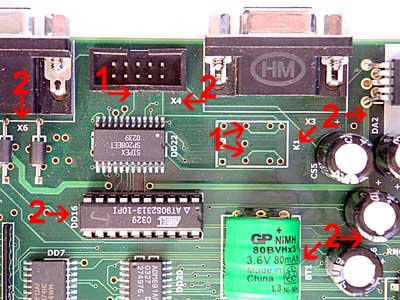

1. The sommers:
In counterfeits two technological sommers are made by
printed circuit, and in the original boards they are made of uninsulated wire and are mounted into the board by soldering.
2.Marking:
The marking of many elements is different, for instance, BT1,
C56, DA2, DD16, L3, L4, X6, K1. Counterfeits have no marking for X4
cutoff point tiers.
TYPE 2
|
Counterfeit |
Original board |
 |
 |

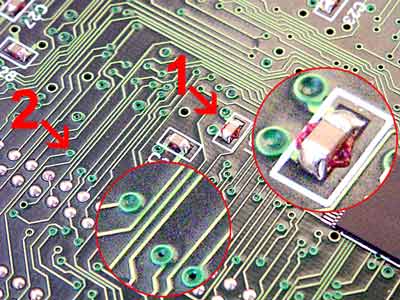

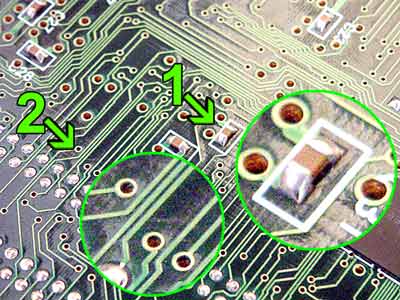

| 1. In counterfeits chips are
pasted to the bottom side of the board with red compound. The
original boards do not have it.
2. Counterfeits have a green masking layer that
completely covers transient apertures. In the original boards all
apertures are of the golden colour.
|
Counterfeit |
Original board |
 |
 |

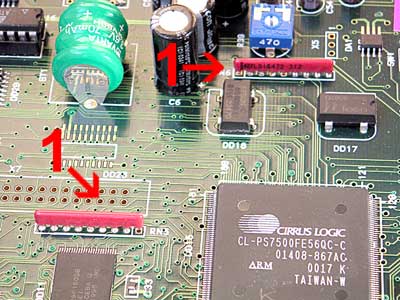

The elements RN5, RN6 are red. Red
elements of that kind have never been mounted into the original
boards.
One more counterfeit board.
One more sample of "amateur and folk arts" has fallen
into our hands. As well as the two platform copy
types described above that are distributed as the boards of
our production, this counterfeit board does not meet the quality
standards of the original products produced by Belatra Company
Limited.
|
Counterfeit |
Original board |
 |
 |

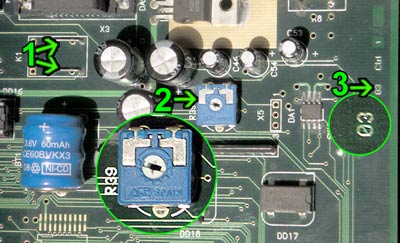

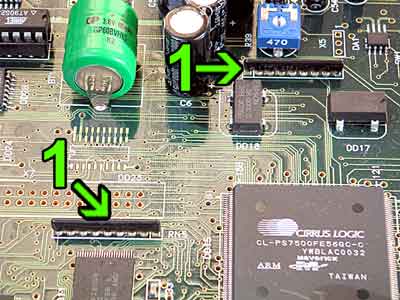

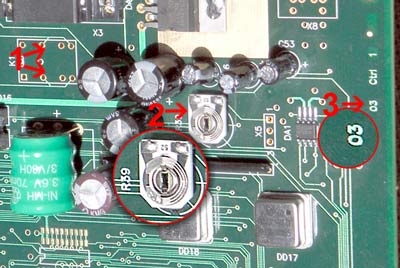

1. The two technological wires are
printed wiring on the counterfeits.
On the original board they are made from the bare conductor and are
mounted into the board by soldering.
2. R39 element.
It is of the white colour on the counterfeits, on the original
boards it is blue. We have never practiced mounting the white R39
elements.
3. The way the figure 3 is typed.
The very form of the figure 3 is different.
|
DEAR CUSTOMERS!
When buying boards, please, pay attention also to the
board serial numbers.
All original boards have different numbers, counterfeit
boards of one game usually have one and the same serial number.
Be careful! We hope that these distinguishing
characteristics will help you avoid problems and troubles that can
be caused by the use of counterfeit products.
WE WISH YOU EVERY SUCCESS IN YOUR BUSINESS, AND MIND
COUNTERFEIT PRODUCTS! |
| |
